50HZ

Application Limits

◎ Max. ambient temperature<40℃;

◎ Sand content(in mass fraction)up to 0.01%;

◎ hydrogen sulfide content up to 1.5mg/L, chlorideion content up to 400mg/L;

◎ pH 6.5 to 8.5;

◎ Maximum: 70 m below the static water table.


Advantages & Features

◎ Edible oil filled motor, stable& reliable runningwith pressure regulating membrane;

◎ Single phase motor equipped with start boxwhich built in capacitor &current mode thermalprotector, convenient for replacement;

◎ Available with cable with a motor plug, disassembleconveniently;

◎ Pump sleeve with screw thread, single stagefloating impellers, except 16 m3/hrs series whichwith integrated stage floating impellers;

◎ Installation in 4" or larger boreholes;

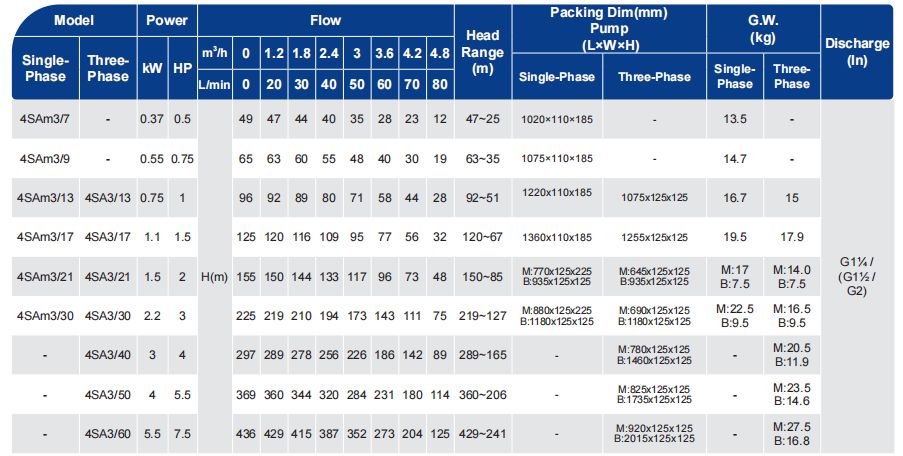

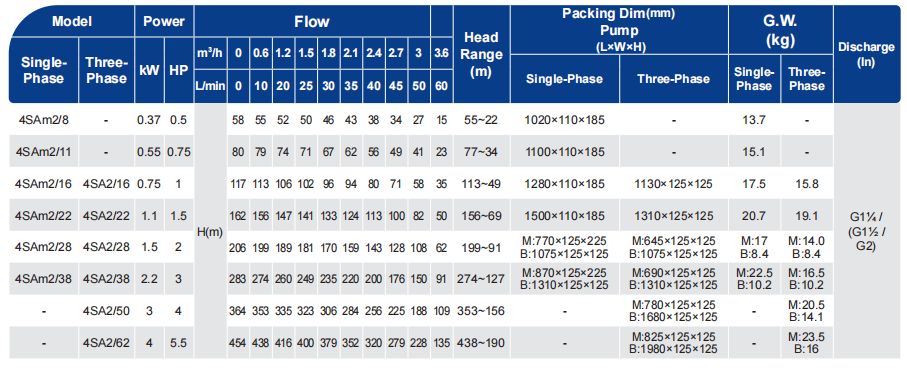

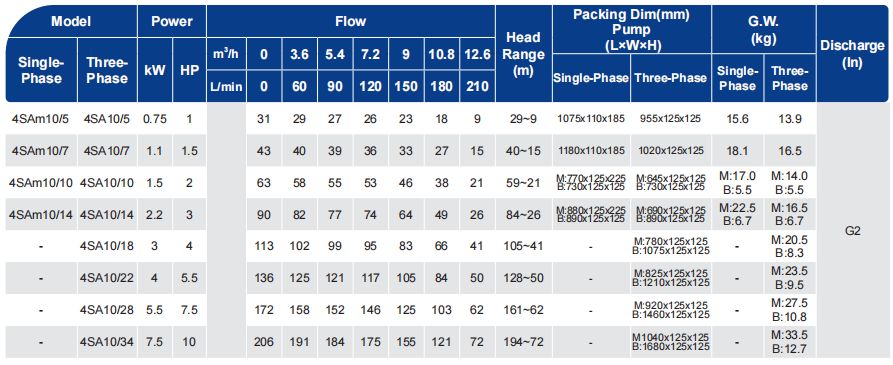

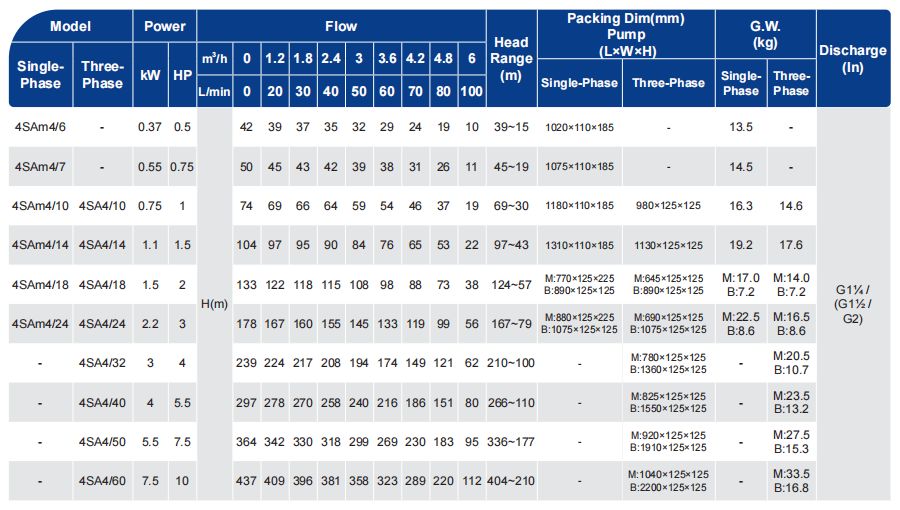

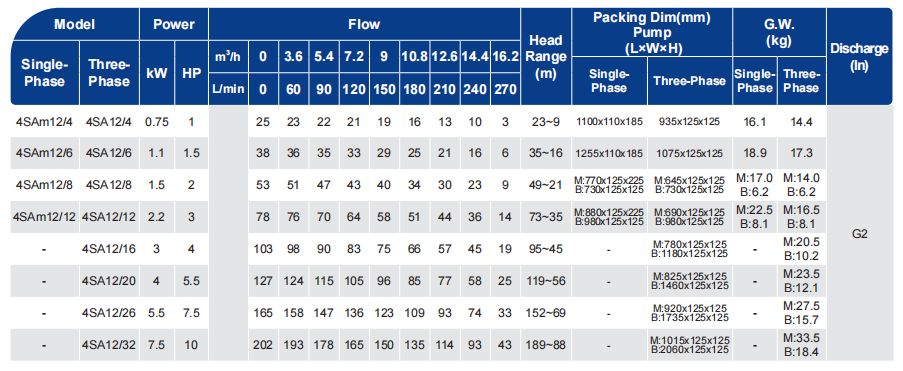

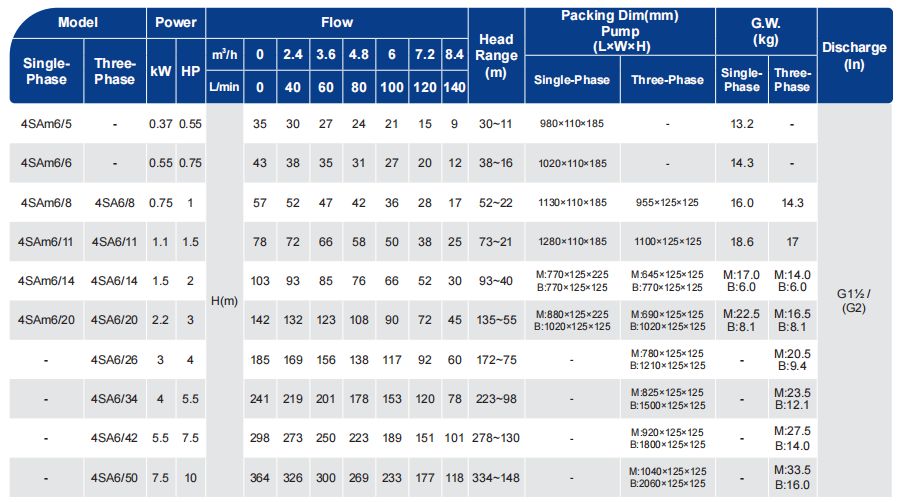

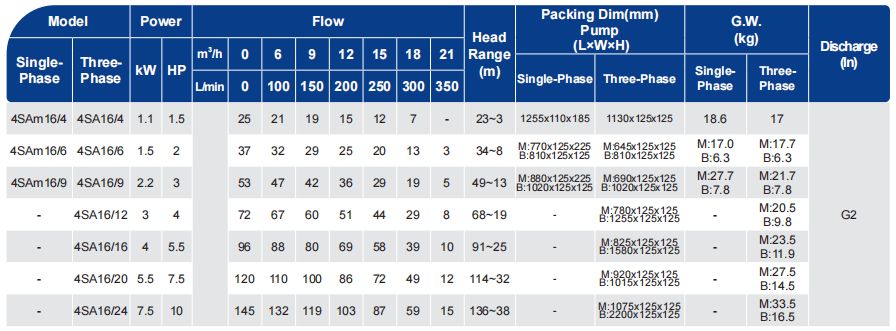

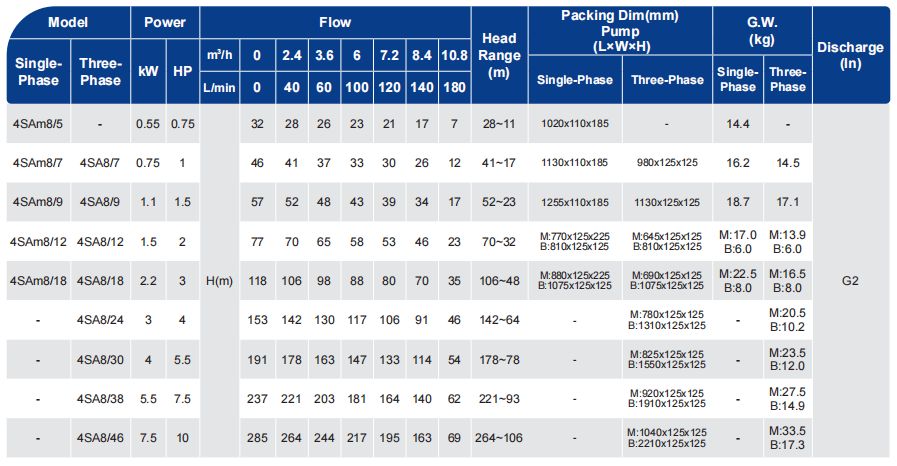

Performance Data

60HZ

Performance Range

Max. Flow: 24/h
Max. Head: 422m

Application Limits

◎ Max. ambient temperature< 40℃;
◎ Maximum permissible quantity of sand:100g/m³ ;
◎ Hydrogen sulfide content up to 1.5mg/L, chloride ion
content up to 400mg/L;
◎ pH 6.5 to 8.5;
◎ Maximum: 70m below the static water table.

Certificate

Application Fields

◎ Building/construction work/Domestic water supply;
◎ Irrigation and Small water work;
◎ Landscaping;
◎ Water conservancy system;
◎ Factory.

Features

◎ Edible oil filled motor, stable& reliable running with pressure regulating membrane;

◎ Single phase motor equipped with start box which built in

capacitor &current mode thermal protector, convenient for

replacement;

◎ Available with cable with a motor plug, disassemble

conveniently;

◎ Pump sleeve with screw thread, single stage floating

impellers, except 16 m3/hrs series which with integrated

stage floating impellers;



◎ Installation in 4" or larger boreholes.

Optional Available On Request

(* Standard configuration on Page 12)

Oil chamber is available with brass or SS304;Discharge

chamber, Inlet parts are available with casting.



Model Instruction
