50HZ

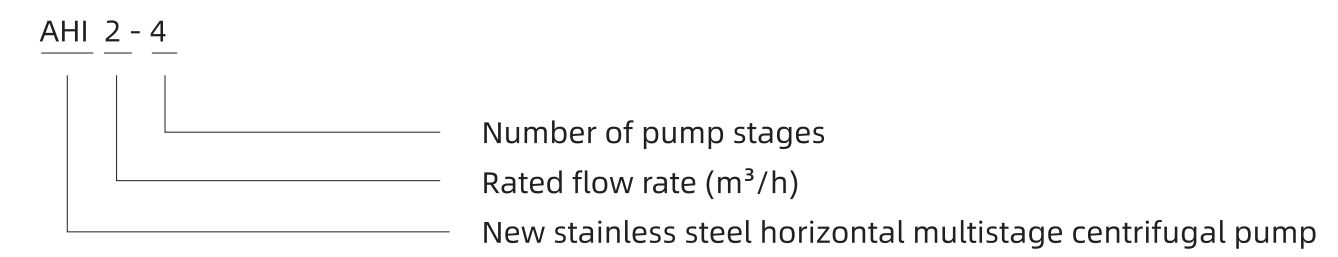

Model Instruction


Overview Of The Product

AHI series new light stainless steel horizontal multistage centrifugal pump is a multi-purpose non-self-priming horizontal multistage centrifugal pump.This series of products has the characteristics of high efficiency,low noise and stable operation.The whole is compact,easy to install,easy to use and maintain.The overflow part is made of high-quality 304 stainless steel stamping and welding.


Application Limits

◎ Thin,clean,non-combustible,and non-explosive liquid containing no solid particle or fiber

◎ Applicable to deliver tap water,alkaline mineral water,softened water or mildly-corrosive medium

◎ The use of a large-power motor must be considered when the density or viscosity of the medium delivered is higher than that of water.

◎ Medium temperature:0°C~+68°C for normal temperature type;68℃~+120°℃ for hot water type

◎ Ambienttemperature:-15℃~+40°C;maximum operating pressure:1.0MPa


Applications Fields

◎ Air conditioning system

◎ Filling machinery

◎ Environmental engineering

◎ Water supply and pressurization system

◎ Fertilization and metering system

◎ Cooling system

◎ Industrial cleaning

◎ Aquaculture

◎ Water treatment system application

◎ Supporting use of chiller


Certificate


Optional Available On Request

◎ Protection class:IP55

◎ Insulation class:F

◎ Working method:S1

◎ Voltage level:220V/50Hz,380V/50Hz


60HZ

Model Instruction


Overview Of The Product

AWI series new light stainless steel horizontal multistage centrifugal pump is a multi-purpose non-self-priming horizontal multistage centrifugal pump. This series of products has the characteristics of high efficiency, low noise and stable operation. The whole is compact, easy to install, easy to use and maintain. The overflow part is made of high-quality 304 stainless steel stamping and welding.


Application Limits

◎ Thin, clean, non-combustible, and non-explosive liquid containing no solid particle or fiber

◎ Applicable to deliver tap water, alkaline mineral water, softened water or mildly-corrosive medium

◎ The use of a large-power motor must be considered when the density or viscosity of the medium delivered is higher than that of water.

◎ Medium temperature: 0℃ -68℃ for normal temperature type; 0℃ -120℃ for hot water type

◎ Ambient temperature: -15℃ -+40℃ ; maximum operating pressure: 1.0MPa


Applications Fields

◎ Air conditioning system

◎ Filling machinery

◎ Environmental engineering

◎ Water supply and pressurization system

◎ Fertilization and metering system

◎ Cooling system

◎ Industrial cleaning

◎ Aquaculture

◎ Water treatment system application

◎ Supporting use of chiller


Certificate


Optional Available On Request

Fully enclosed secondary air-cooled special shaft motor (extended shaft), NSK bearing/domestic brand bearing, 50W800 cold-rolled silicon steel sheet

◎ Protection level: IP55

◎ Insulation class: Class F

◎ Working method: S1

◎ Voltage level: 220V/380V/60Hz
