Application Limits

◎ Liquid temperature:+2℃～+95℃

◎ Maximum ambient temperature +40℃

◎ Maximum system pressure 10bar

◎ Protection level: IP44

◎ Mains connection:220V/50Hz

◎ Insulation class: H

◎ Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water

◎ Installation: the motor shaft must be kept in horizontal direction

◎ pH: 6.5 to 8.5

Advantages & Features

◎ 3-speed adjustment

◎ Low noise

◎ No leakage

◎ Automatic Exhaust

◎ Various pump body structures applied to various types of installation

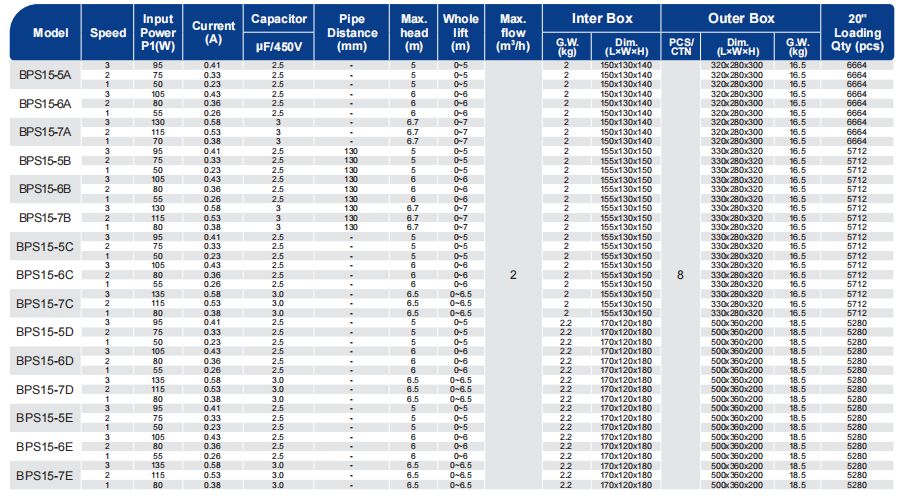

Performance Data
