50HZ

Application Limits

◎ Max. ambient temperature<40℃

◎ Sand content(in mass fraction) up to 0.01%

◎ Hydrogen sulfide content up to 1.5mg/L, chlorideion content up to 400mg/L

◎ pH 6.5 to 8.5

◎ Maximum: 70 m below the static water table.


Advantages & Features

◎ Edible oil flled motor, stable& reliable runningwith pressure regulating membrane;

◎ Single phase motor equipped with start box whichbuilt in capacitor &current mode thermal protector,convenient for replacement;

◎ Pump sleeve with screw thread, single stage floatingimpellers;

◎ Installation in 3" or larger boreholes.

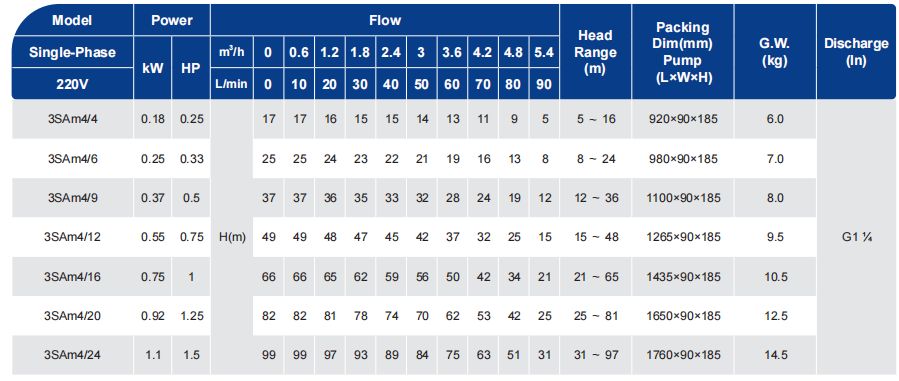

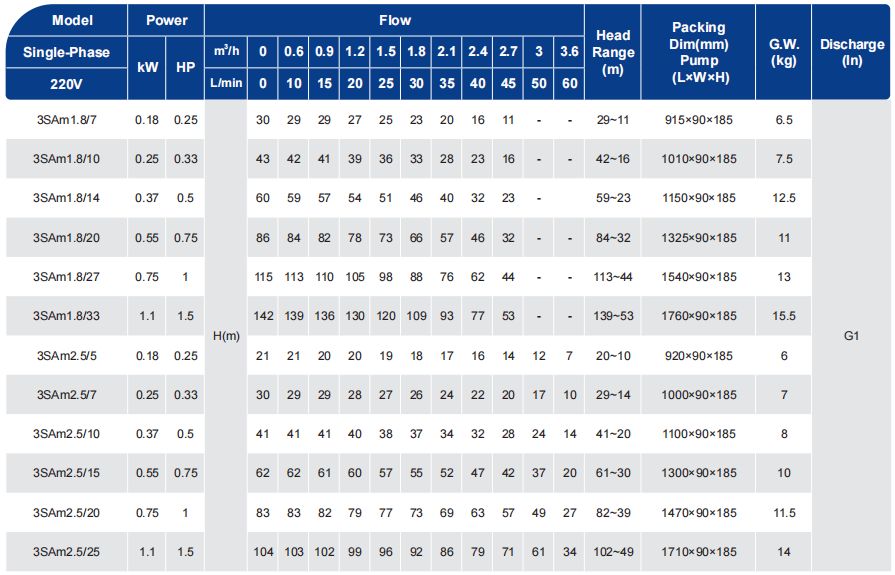

Performance Data

60HZ

Performance Range

Max. Flow: 4.2/h
Max. Head: 131m

Application Limits

◎ Max. ambient temperature< 40℃;
◎ Maximum permissible quantity of sand:100g/m³ ;
◎ pH 6.5 to 8.5;
◎ Maximum: 70m below the static water table.

Certificate

Application Fields

◎ Building/construction work/Domestic water supply;
◎ Irrigation and Small water work;
◎ Landscaping;
◎ Water conservancy system;
◎ Factory.

Features

◎ Edible oil filled motor, stable& reliable running with pressure regulating membrane;

◎ Single phase motor equipped with start box which built in

capacitor &current mode thermal protector, convenient for

replacement;

◎ Pump sleeve with screw thread, single stage floating

impellers;


◎ Installation in 3" or larger boreholes.

Optional Available On Request

(* Standard configuration on Page 06)

Oil chamber is available with Brass or SS304;Discharge

chamber, Inlet parts are available with Casting or SS304.



Model Instruction
