Application Limits
◎ Max. ambient temperature<40℃;
◎ Sand content(in mass fraction)up to 0.01%;
◎ hydrogen sulfide content up to 1.5mg/L, chlorideion content up to 400mg/L;
◎ pH 6.5to 8.5;
◎ Maximum: 70 m below the static water table.
Advantages & Features
◎ Edible oil filled motor, stable& reliable runningwith pressure regulating membrane;
◎ Single phase motor with built in B Grade oilproofed capacitor &thermal mode protector;
◎ Available with cable with a motor plug, disassemble conveniently;
◎ Available with pump casing with plug. 2~8 m3/hrsseries with single stage floating impellers,10~16m3/hrs series with integrated stage fioating impellers;
◎ Installation in 4" or larger boreholes;

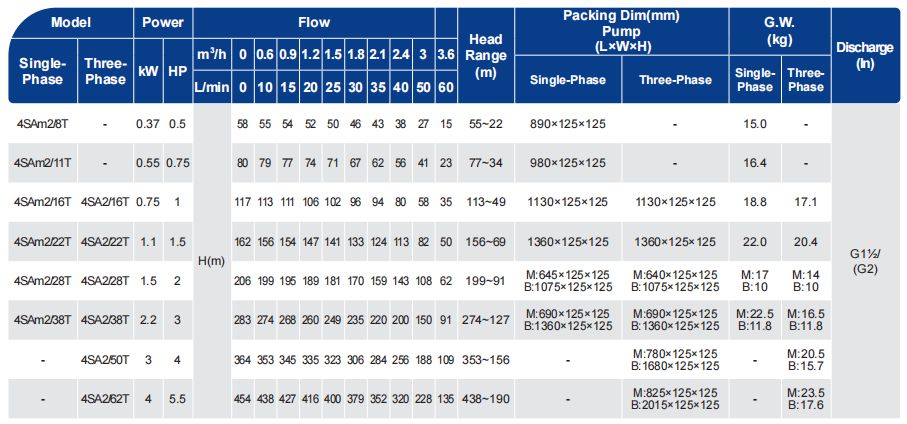

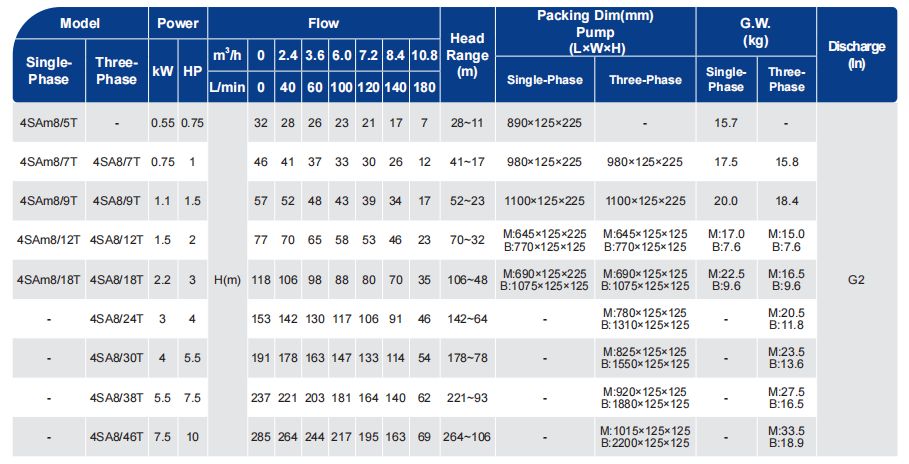

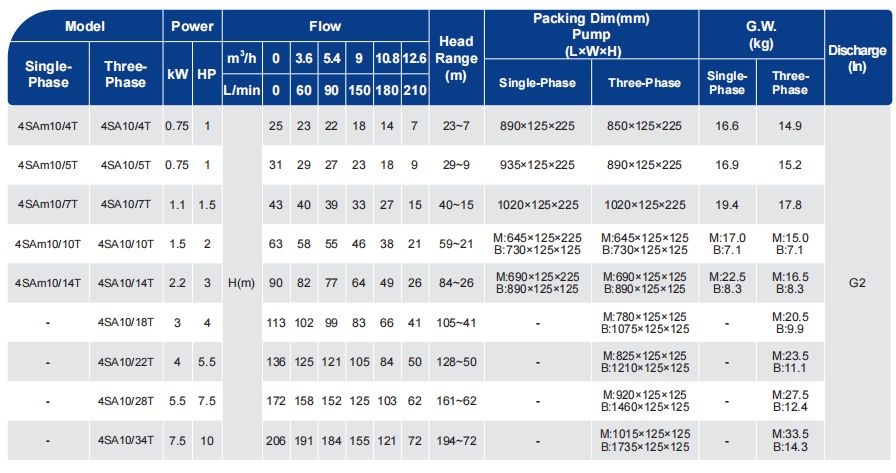

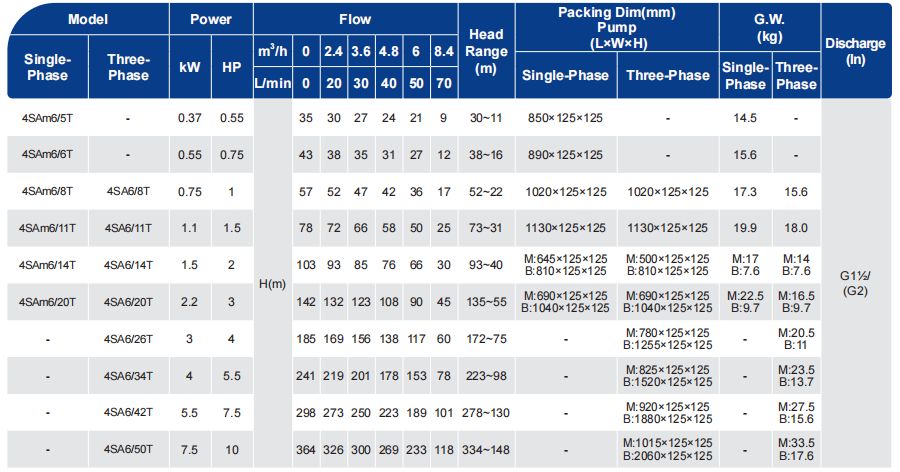

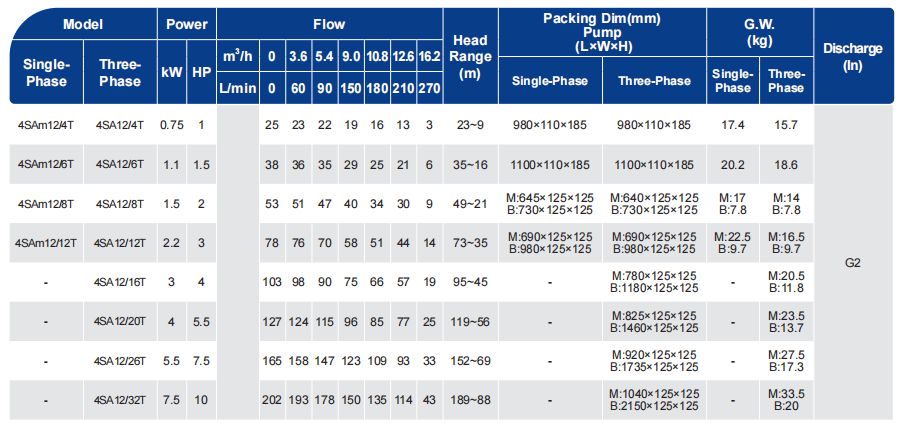

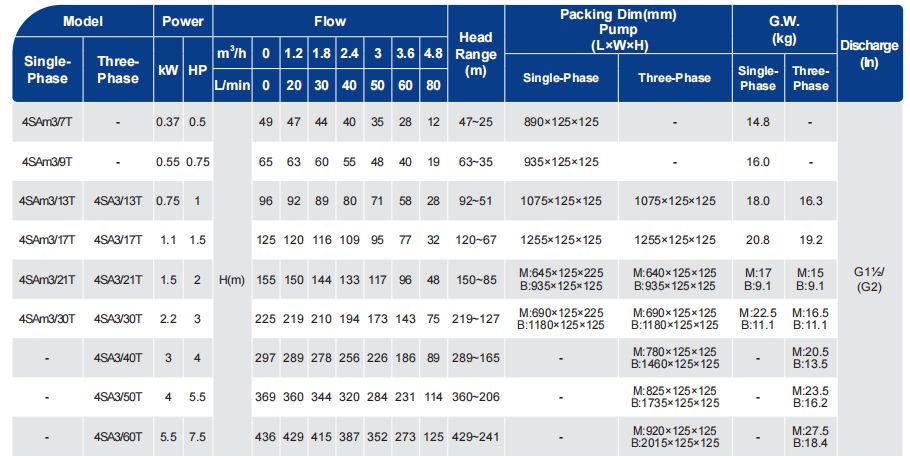

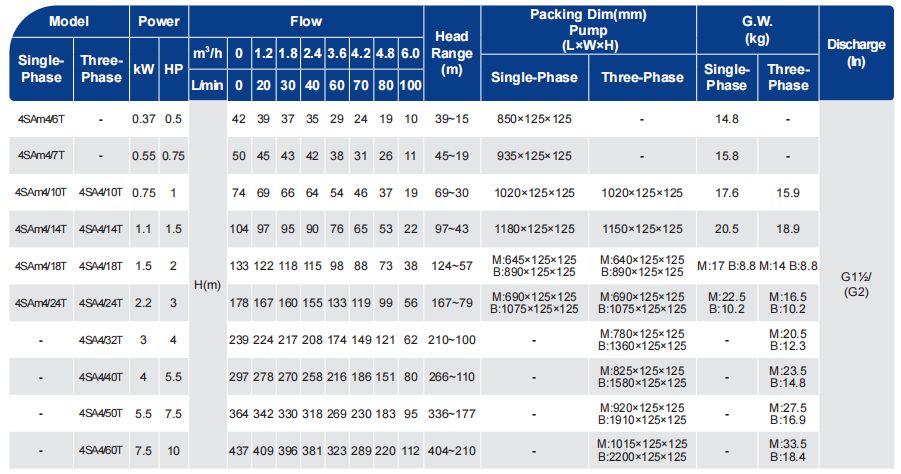

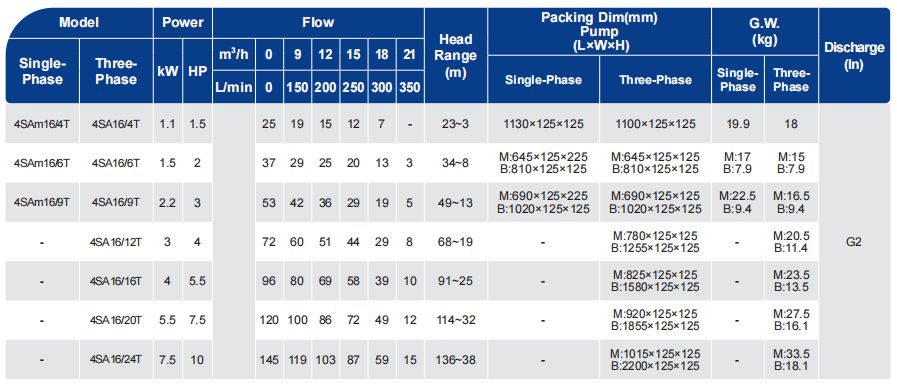

Performance Data
Performance Range
Max. Flow: 24m³/hMax. Head: 422m
Application Limits
◎ Max. ambient temperature< 40℃;◎ Maximum permissible quantity of sand:100g/m³ ;
◎ Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
◎ pH 6.5 to 8.5;
◎ Maximum: 70m below the static water table.
Certificate
Application Fields
◎ Building/construction work/Domestic water supply;◎ Irrigation and Small water work;
◎ Landscaping;
◎ Water conservancy system;
◎ Factory.
Features
◎ Edible oil filled motor, stable& reliable running with pressure regulating membrane;◎ Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector;
◎ Available with cable with a motor plug, disassemble conveniently;
◎ Available with pump casing with plug,2~8 m3/hrs series with single stage floating impellers, 10~16m3/hrs series with integrated stage floating impellers;
◎ Installation in 4" or larger boreholes.
Model Instruction
